Radially Oriented Centerlines

This tool draws centerlines for all circles in a polar array at once.

Complementary Tool

Designed to work well with the previously released CAR command (which draws and arrays circles simultaneously).

Efficiency

Instead of drawing centerlines individually for each circle in a circular pattern, this tool automates the process based on the array's center point.

Centerlines are automatically drawn for all　selected circles relative to the array center.

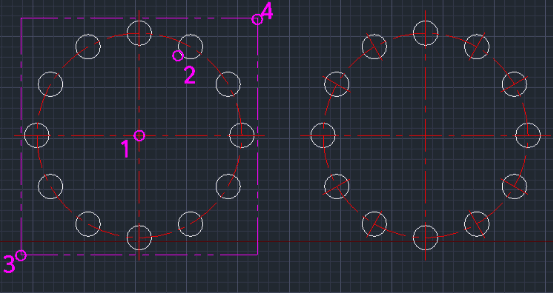

1. 1.Type clp in the command line and press Enter.
2. 2.Click the Center Point of the entire polar array (the axis of rotation).
3. 3.Click one of the Arrayed Circles (to identify the target object type/location).
4. 4.Select all the arrayed circles using a Window　Selection (ensure only the circles are　selected).
